Deploy Minio Cluster with Ansible

Introduction

In this post, we’ll demonstrate how to deploy a scalable, multinode MinIO cluster using Ansible, creating a robust object storage solution suitable for businesses of any size.

First, let’s take a closer look at these concepts:

MinIO

MinIO is an open-source, high-performance object storage server that is fully compatible with the Amazon S3 (Simple Storage Service) API.

It is designed to handle unstructured data like photos, videos, backups, and logs. MinIO is highly scalable and secure, making it suitable for both personal use and enterprise-level applications that require reliable object storage.

Ansible

Ansible is an open-source automation tool used to configure systems, manage deployments, and automate IT tasks like application installation, updates, and cloud provisioning.

It simplifies the automation of repetitive processes, enabling system administrators and DevOps teams to efficiently manage infrastructure at scale without complex setups.

Requirements

For our demonstration, we need at least 2 servers with 2 disks each, and Ansible already installed.

Servers

I’ve already provisioned two Debian Bookworm servers in Hetzner, each with 3 additional disks.

Install Ansible

Installing ansible is easy. You can install it with your distro’s package manager or creating a python virtual environment.

I prefer the second optoin since every python project can have different dependencies and versions.

# Install virtual environment module for python
sudo apt update && sudo apt install python3-venv

# Create and activate a venv called ansible
python3 -m venv ansible
source ansible/bin/activate

# Install Ansible in this environment
pip install --upgrade ansible

Setup Cluster

Now it’s time to roll up our sleeves and dive in. I wrote an Ansible Role that is available via this Link.

# Clone the project
git clone https://github.com/shaerpour/playbook.d.git && cd playbook.d/minio_multinode

In next step, edit inventory.yml file and add your servers to the list.

vim inventory.yml

---
all:
  hosts:
    minio-1:
      ansible_host: ""
    minio-2:
      ansible_host: ""

vim roles/minio_multinode/vars/main.yml

---
minio_multinode_root_user: "ahsp"                           # Default: minioadmin
minio_multinode_root_password: "BwHVuS6j4U03K6hzXfnXVMSp1"  # Default: minioadmin
minio_disk_count: 3                                         # Default: 2

As you can see, I have 3 disks per node and custom credentials for my cluster. Leave them comment if you want them with default values.

# Run the main playbook to start initializing minio cluster.
# add --ask-become-pass if you are running playbook with
# non-privileged users.
ansible-playbook -i inventory.yml main.yml -u debian -K

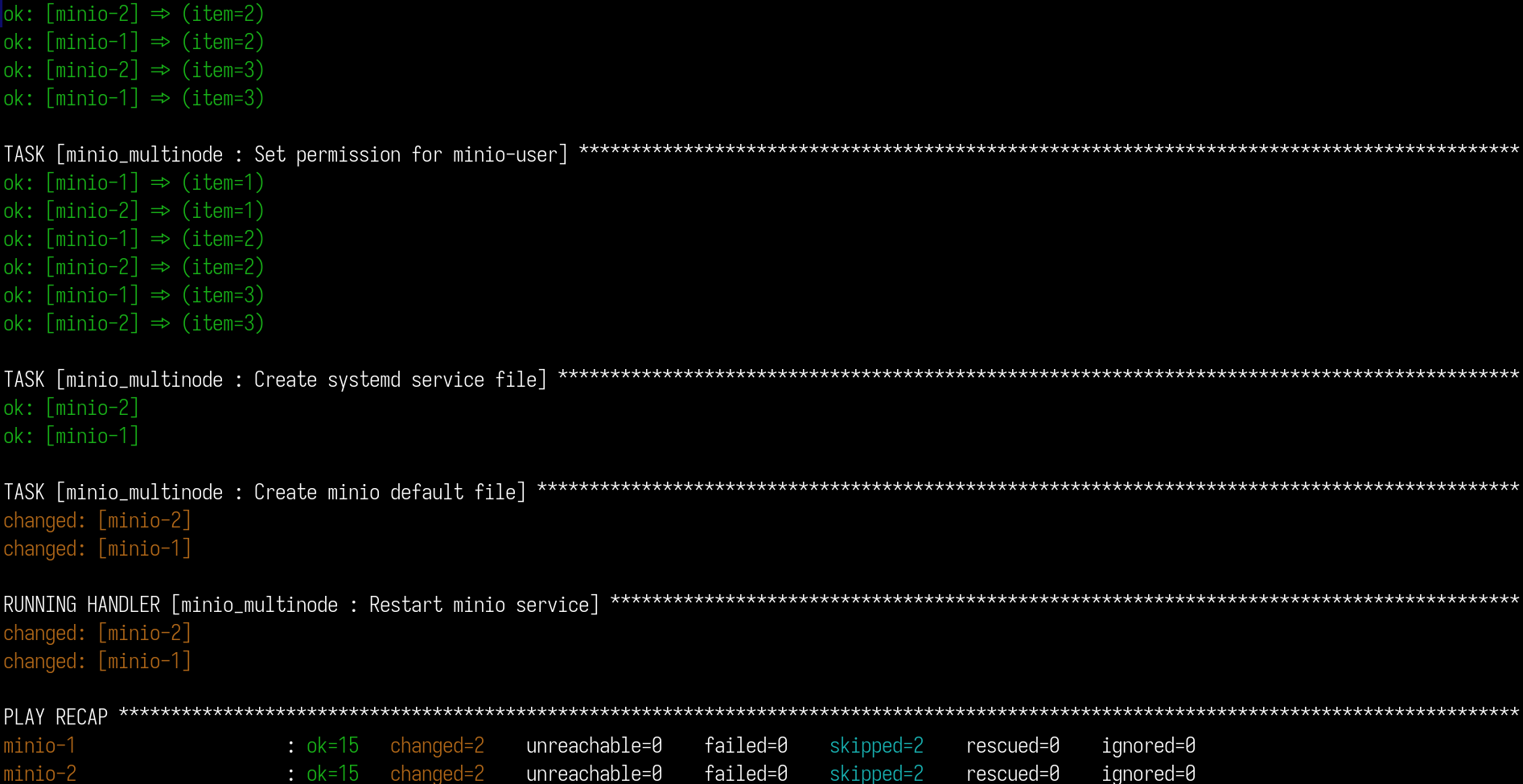

Congrats! As the image below shows, We successfully initialized a minio cluster.

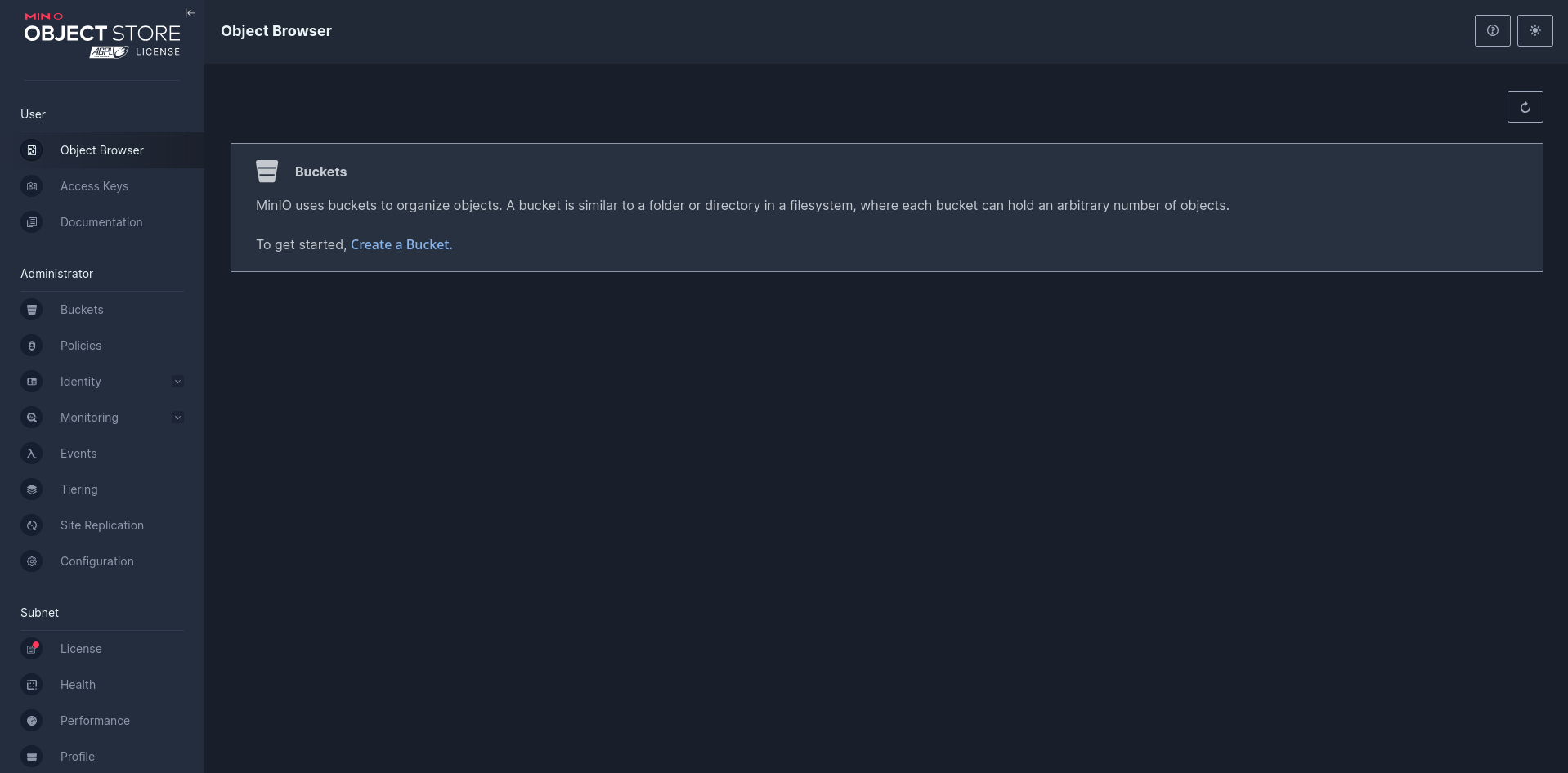

Open up your browser and paste one of your server’s IP on port 9001. Your minio console will show up.

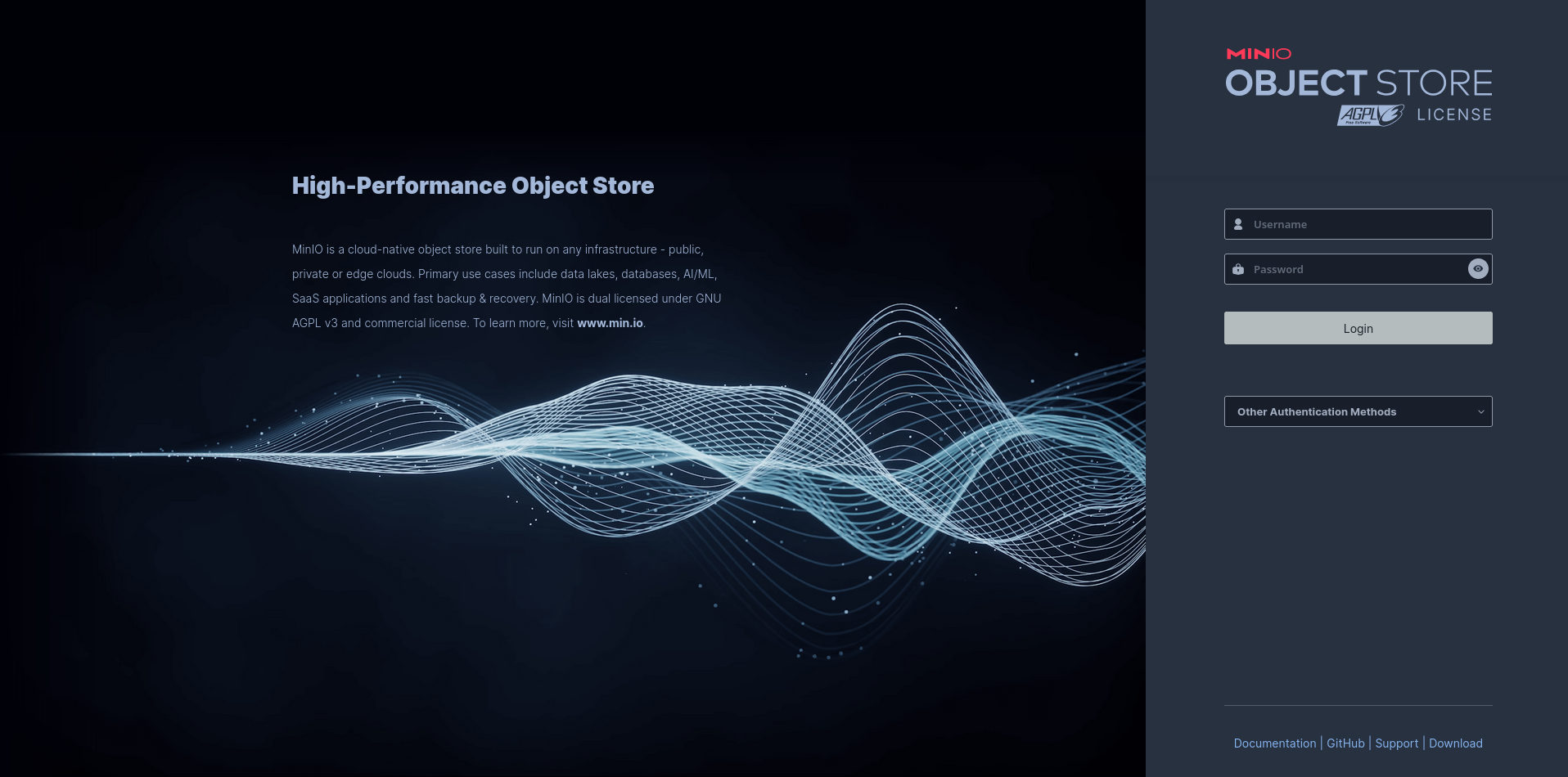

You can log in with the credentials you have configured and enjoy!
